Applicable Scenarios
It is applicable to industries such as petrochemical, electric power and energy, metallurgy and mining, municipal environmental protection, etc. , and can perform parameter configuration, range calibration and fault diagnosis on pressure, temperature, flow, level transmitters and intelligent valve positioners.
Product Features
Full protocol compatibility
Compatible with both HART and FF buses, it adapts to mainstream instruments at home and abroad, serving as a universal device for all scenarios
Professional DD Analysis
Supports private menu parsing, DD library can be imported and upgraded, and free lifetime updates are provided
All-in-one Power Supply and Communication
Equipped with multiple built-in power supplies and signal sources, it enables stable communication even in low-impedance loops.
Remote Multilingual Adaptation
Supports remote debugging over the internet, and automatically localizes imported instruments in 201 languages
Industrial Safety Protection
IP67 dustproof, waterproof, shock-resistant, intrinsically safe and explosion-proof, suitable for use in hazardous Zone 1 environments
High configuration for smooth operation
4G RAM + 64G ROM, large memory capacity, fast system response, and efficient on-site debugging without being laggy
Technical Parameters
| Project | Specifications |
|---|---|
| FF connection mode | Networked devices or offline devices (can act as LAS) |
| HART Connection Mode | Supports all four modes: internal power supply with internal resistance, external power supply with external resistance, valve positioner, and external power supply with internal resistance |

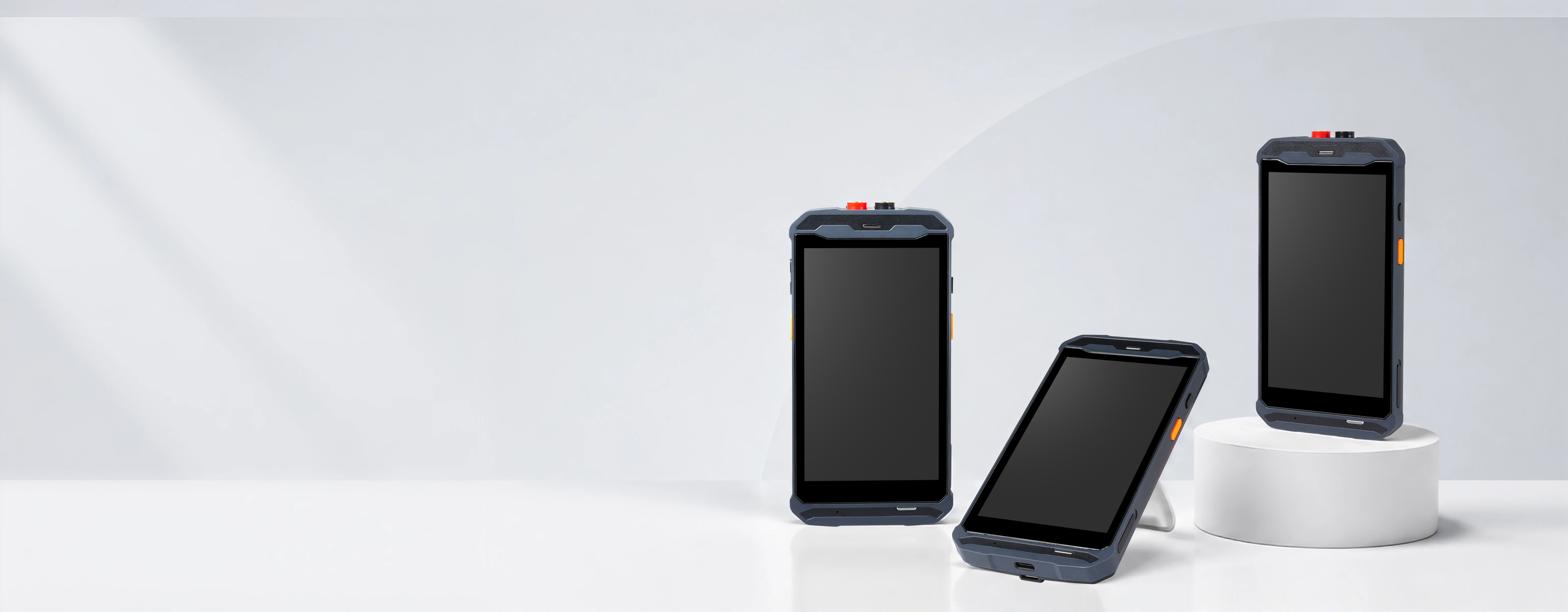

| Show | 5.5-inch capacitive touch screen; 1280*720 pixels |
| Dimensions | 168×184×17.5mm |
| Weight | 300g |
| press the button | 1 power button |
| Power Supply | 5100 mAh polymer battery, standby time > 300 hours |

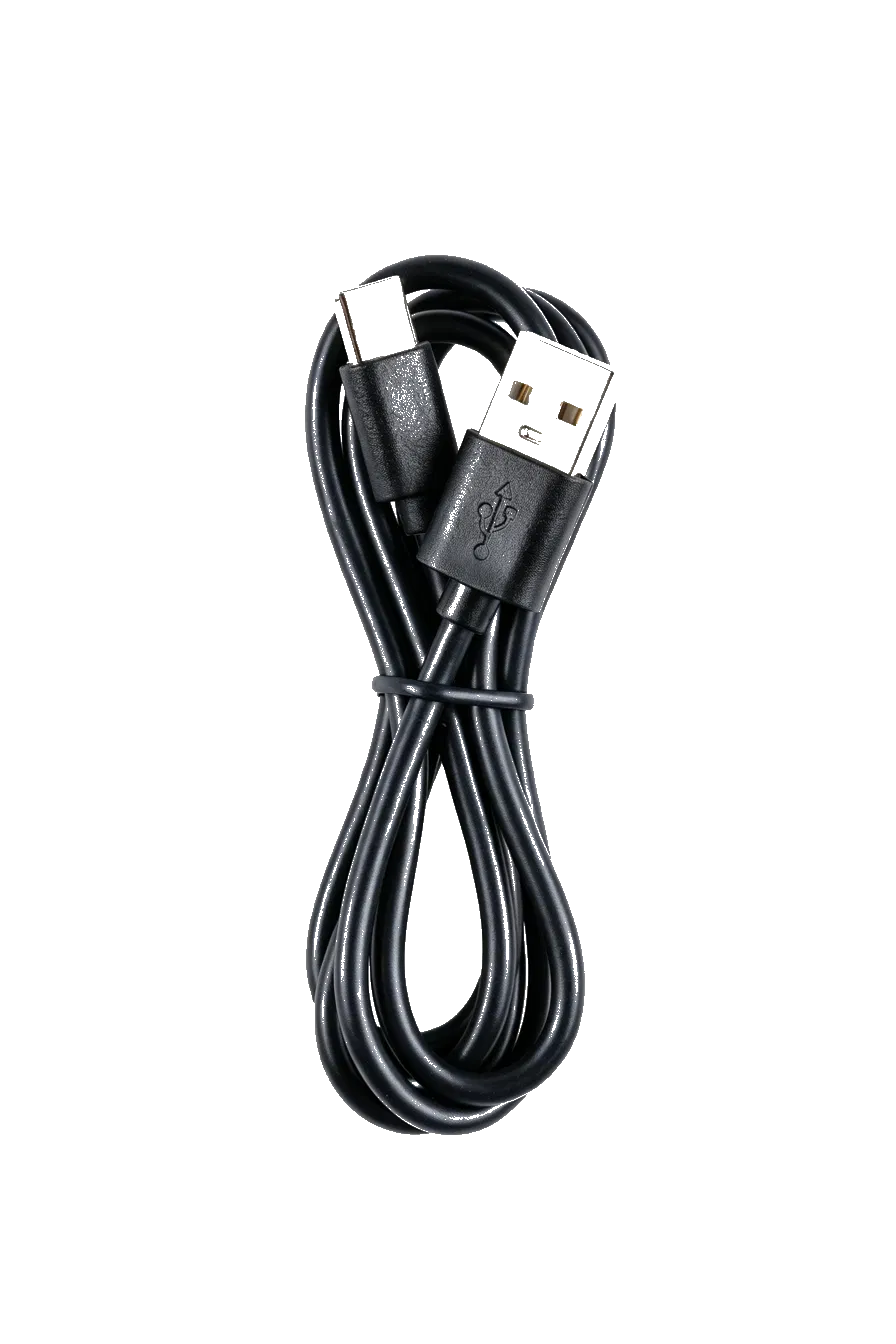

| Charging Method | Powered by a dedicated adapter, the charging time is approximately 4 hours. |
| Battery | Over 10 hours under typical operating conditions, with support for external standalone charging |
| Environmental Conditions | Operating temperature range:(-20 to 50) ℃; Ambient humidity: 0% to 95% RH, non-condensing |
| Protection Level | IP67 rated, 1-meter drop test certified |
| Supported Protocols | HART; FF |
